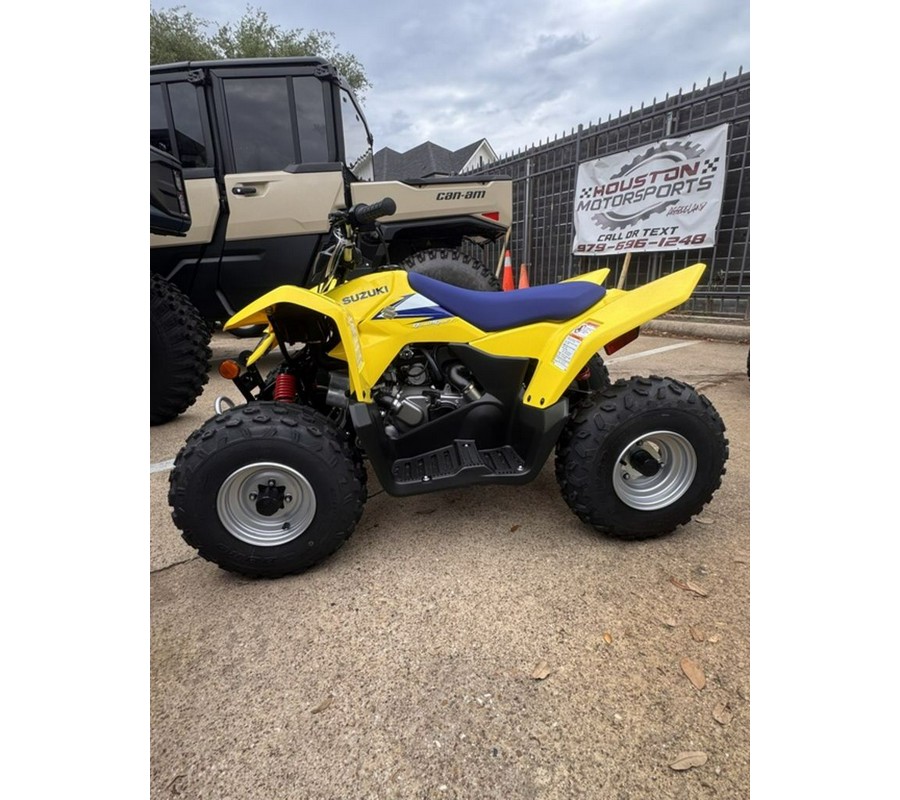

2026 Suzuki QuadSport Z90

The 2026 Suzuki QuadSport Z90 is the ideal ATV for adult-supervised riders ages twelve and older to develop their off-road riding skills. Convenient features like an automatic transmission and electric starter help make this ATV easy to operate. To help young beginners grow into accomplished ATV riders, the Z90 includes a keyed ignition switch and throttle limiter to adjust engine performance to the operator’s skill level.
Get young riders started on the QuadSport Z90, so the whole family can experience the fun of the outdoors and the joy of riding a Suzuki!
SpecificationsEngine90cc, 4-stroke, air-cooled, single cylinder, OHC
Bore x Stroke45.5 mm x 55.2 mm (1.791 in. x 2.173 in.)
Compression Ratio9.5:1
Fuel SystemMikuni VM16, single carburetor
StarterElectric and back-up recoil
LubricationWet sump
TransmissionCVT automatic
ClutchDry shoe, automatic, centrifugal type
Driven Wheels2WD
Final DriveChain, RK530, 60 links
Suspension FrontIndependent, swing axle, coil spring, oil damped
Suspension RearSwingarm type, coil spring, oil damped
Brakes FrontTwin drum brakes
Brakes RearSingle drum brake
Tires FrontAT19 × 7-8, tubeless type x 2
Tires RearAT19 × 7-8, tubeless type x 2
Fuel Tank Capacity1.6 US gal. (6.0 L)
ColorChampion Yellow No. 2
IgnitionElectronic ignition (CDI)
HeadlightN/A
Tail LightN/A
Overall Length1505 mm (59.3 in.)
Overall Width875 mm (34.4 in.)
Overall Height915 mm (36.0 in.)
Wheelbase1005 mm (39.6 in.)
Ground Clearance150 mm (5.9 in.)
Seat Height650 mm (25.6 in.)
Curb Weight127 kg (280 lb.)
Warranty12-month limited warranty
ExtensionLonger coverage periods with other benefits are available through Suzuki Extended Protection (SEP)
