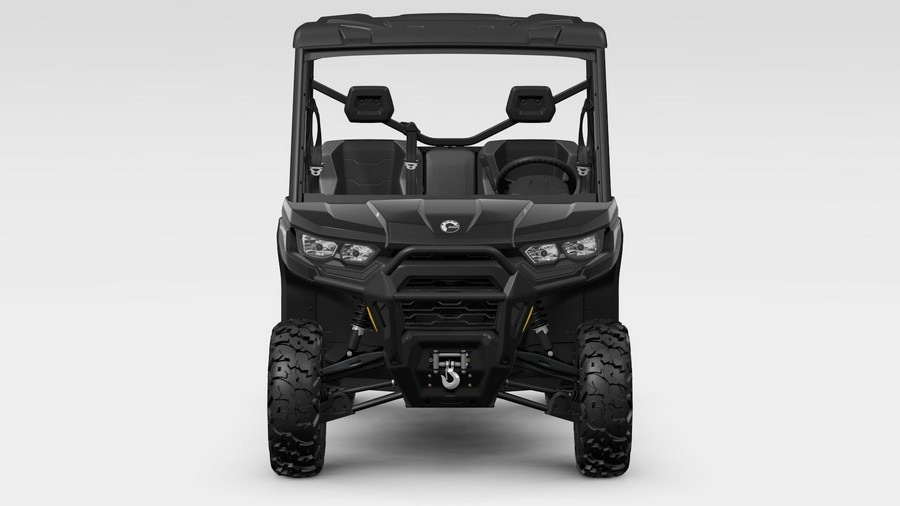

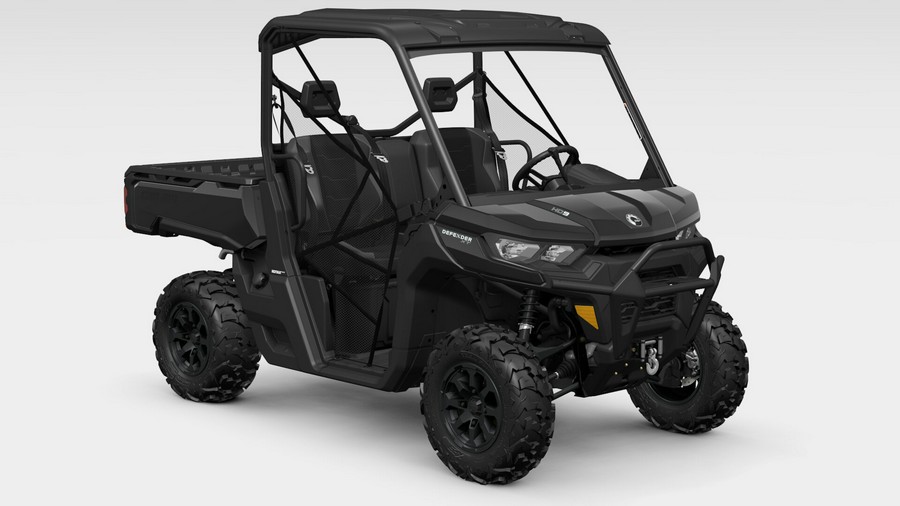

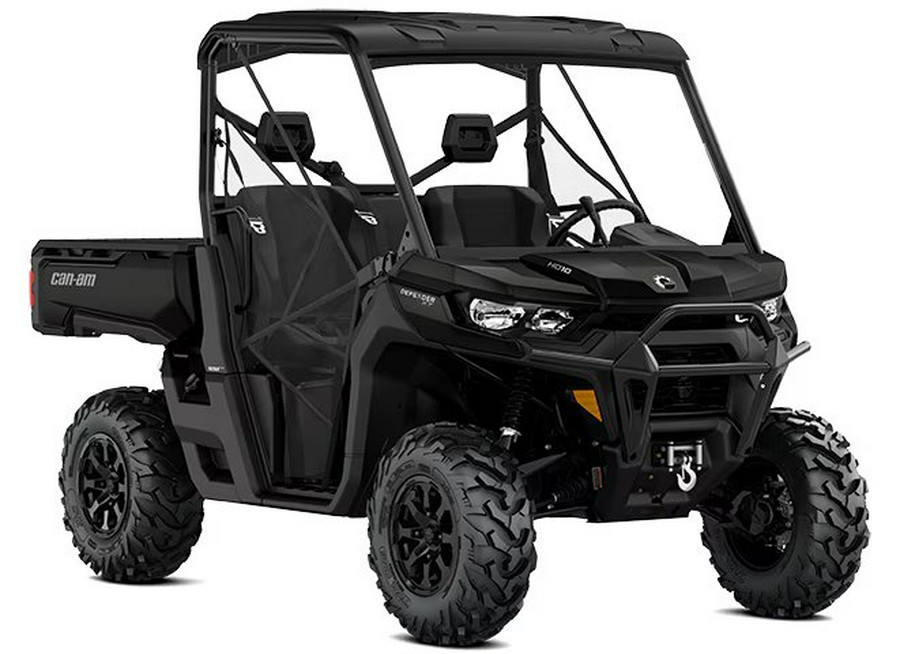

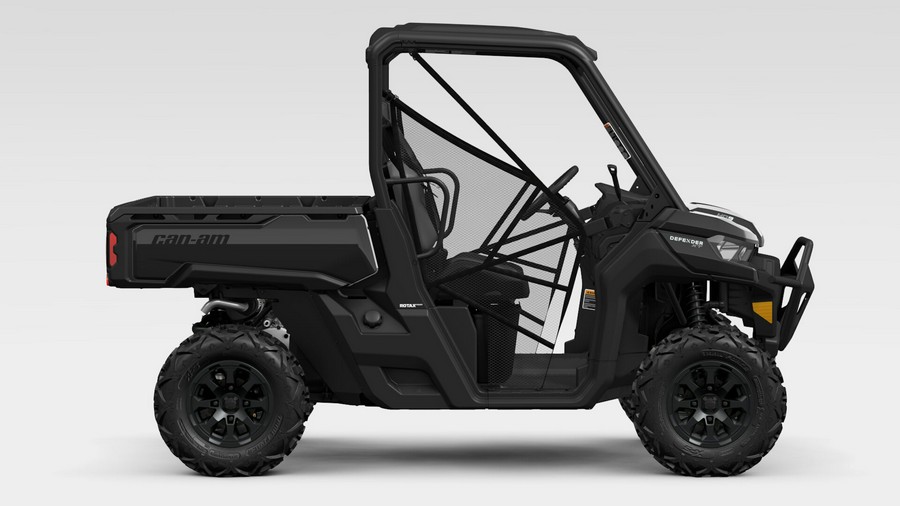

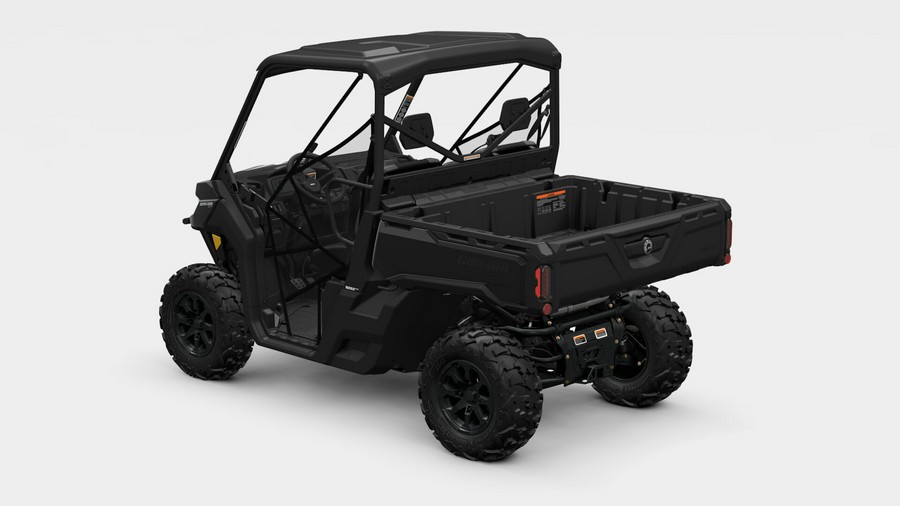

2025 CAN-AM Defender XT HD10

EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.

Engine:

Type - HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled

Fuel Delivery System   - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)

Transmission - H10: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P

Drive Train - H10: Selectable Turf Mode / 2WD / 4WD auto-Locking front differential

Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter

Power Steering - Dynamic Power Steering (DPS)

Suspensions:

Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) suspension travel

Front Shocks - Twin tube gas charged shocks

Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) suspension travel

Rear Shocks - Twin tube gas charged shocks

Tires/Wheels:

Front Tires - HD10: XPS Trail King 27 x 9/11 x 14 in.

Rear Tires - HD10: XPS Trail King 27 x 9/11 x 14 in.

Wheels - 14 in. cast-aluminum

Brakes:

Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers

Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers

Technology - Brake holding mechanism

Dimensions/Capacities:

Length - 125.7 in. (319.4 cm)

Width - 62 in. (157.5 cm), 64 in. (162.5 cm)

Height - 78 in. ( 198.1 cm), 80 in. ( 203.2 cm)

L x W x H - HD10: 125.7 x 64 x 80 in. (319.4 x 162.5 x 203.2cm)

Wheel Base - 83 in. (211.5 cm)

Ground Clearance - HD7: 11 in. (28 cm)

Chassis Cage - Profiled cage ROPS approved

Estimated Dry Weight* - HD10: 1,623 lb (736 kg)

Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)

Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)

Tailgate Load Capacity - 250 lb (113.4 kg)

Storage Capacity - Total: 16.2 gal (61.3 L)

Towing Capacity - 2,500 lb (1,134 kg)

Payload Capacity - 1,500 lb (680 kg)

Fuel Capacity - 10.6 gal (40 L)

Person Capacity - 3

Features:

Gauge - 4.5 in. wide digital display

Battery - 12-V (30 amp/h)

Magneto - 650-W

Instrumentation - DC outlet (10-A) USB Port (10-A) x 2

Lighting - Front lighting output 140-W, LED tail lights

Winch - 4,500 lb (2,041 kg) winch with roller fairlead

Seat - VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced XT seat skin

Steering Wheel - Adjustable tilt steering

Protection - XT Front bumper, HMWPE full skid plate, Full hard roof

Hitch Type - 2 in. hitch receiver

Gauge:

Type of gauge - 4.5 in. wide digital display

Warranty:

Factory - 1-year BRP Limited warranty

Extended Service Terms -  B.E.S.T. term available up to 30 months
